Compartmental models¶

We follow the recommendations by Hofmeyr (2020) (https://doi.org/10.1016/j.biosystems.2020.104203) when it comes to compartmentalisation. That is, describe compartmentalised variables in terms of amounts instead of concentration and scale kinetic constants by the compartment to yield rate factors.

Depending on your use case, your experimental data might be described as concentrations and communication is also prefered in concentrations.

mxlpy provides various ways of how you can automate that mapping

• use Derived variables and parameters to obtain concentrations from the amounts.
• use InitialAssignments to calculate initial amounts in case your data is given in concentrations

Below we define convenience functions for exactly that, to reduce boilerplate code

In [2]:

@dataclass
class VarNames:
    amount: str
    conc: str


def add_cvar(
    model: Model,
    name: str,
    compartment: str,
    initial: float,
    *,
    initial_is_amount: bool = True,
    amount_prefix: str = "n_",
    conc_prefix: str = "c_",
) -> VarNames:
    amount = f"{amount_prefix}{name}_{compartment}"
    if not initial_is_amount:
        # FIXME: rewrite initial assignment to take in float?
        model.add_parameter(init_c := f"c_{name}_init", initial)
        model.add_variable(
            amount,
            InitialAssignment(fn=fns.mul, args=[init_c, compartment]),
        )
    else:
        model.add_variable(amount, initial)
    model.add_derived(
        conc := f"{conc_prefix}{name}_{compartment}",
        fn=fns.div,
        args=[amount, compartment],
    )
    return VarNames(amount, conc)


m = Model()
m.add_parameters({"c1": 2.0, "c2": 4.0})

# Add a compartmentalised variable with an initial amount
x_c1 = add_cvar(m, "x", compartment="c1", initial=1.5)

# Add a compartmentalised variable with an initial concentration
x_c2 = add_cvar(m, "x", compartment="c2", initial=1.5, initial_is_amount=False)

args = m.get_args()
print("Amounts", args.loc[[x_c1.amount, x_c2.amount]], sep="\n", end="\n\n")
print("Concentrations", args.loc[[x_c1.conc, x_c2.conc]], sep="\n", end="\n\n")

@dataclass class VarNames: amount: str conc: str def add_cvar( model: Model, name: str, compartment: str, initial: float, *, initial_is_amount: bool = True, amount_prefix: str = "n_", conc_prefix: str = "c_", ) -> VarNames: amount = f"{amount_prefix}{name}_{compartment}" if not initial_is_amount: # FIXME: rewrite initial assignment to take in float? model.add_parameter(init_c := f"c_{name}_init", initial) model.add_variable( amount, InitialAssignment(fn=fns.mul, args=[init_c, compartment]), ) else: model.add_variable(amount, initial) model.add_derived( conc := f"{conc_prefix}{name}_{compartment}", fn=fns.div, args=[amount, compartment], ) return VarNames(amount, conc) m = Model() m.add_parameters({"c1": 2.0, "c2": 4.0}) # Add a compartmentalised variable with an initial amount x_c1 = add_cvar(m, "x", compartment="c1", initial=1.5) # Add a compartmentalised variable with an initial concentration x_c2 = add_cvar(m, "x", compartment="c2", initial=1.5, initial_is_amount=False) args = m.get_args() print("Amounts", args.loc[[x_c1.amount, x_c2.amount]], sep="\n", end="\n\n") print("Concentrations", args.loc[[x_c1.conc, x_c2.conc]], sep="\n", end="\n\n")

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[2], line 42
     39 x_c1 = add_cvar(m, "x", compartment="c1", initial=1.5)
     41 # Add a compartmentalised variable with an initial concentration
---> 42 x_c2 = add_cvar(m, "x", compartment="c2", initial=1.5, initial_is_amount=False)
     44 args = m.get_args()
     45 print("Amounts", args.loc[[x_c1.amount, x_c2.amount]], sep="\n", end="\n\n")

Cell In[2], line 23, in add_cvar(model, name, compartment, initial, initial_is_amount, amount_prefix, conc_prefix)
     18 if not initial_is_amount:
     19     # FIXME: rewrite initial assignment to take in float?
     20     model.add_parameter(init_c := f"c_{name}_init", initial)
     21     model.add_variable(
     22         amount,
---> 23         InitialAssignment(fn=fns.mul, args=[init_c, compartment]),
     24     )
     25 else:
     26     model.add_variable(amount, initial)

NameError: name 'InitialAssignment' is not defined

Here is another quick conveniece function to quickly kinetic constants and their respective **rate factors **

In [3]:

def rate_factor(rxn_place: float, k: float, compartment: float) -> float:
    return rxn_place * k / compartment


def add_rate_factor(
    model: Model,
    base: str,
    value: float,
    rxn_compartment: str,
    cpd_compartment: str,
    k_prefix: str = "k_",
    f_prefix: str = "f_",
) -> str:
    model.add_parameter(k := f"{k_prefix}{base}", value)
    f = f"{f_prefix}{base}"
    model.add_derived(
        f,
        fn=rate_factor,
        args=[rxn_compartment, k, cpd_compartment],
    )
    return f


m = Model()
m.add_parameters({"c1": 2.0, "a1": 4.0})
rf = add_rate_factor(m, "r1", 1.0, rxn_compartment="a1", cpd_compartment="c1")

m.get_args().loc[rf]

def rate_factor(rxn_place: float, k: float, compartment: float) -> float: return rxn_place * k / compartment def add_rate_factor( model: Model, base: str, value: float, rxn_compartment: str, cpd_compartment: str, k_prefix: str = "k_", f_prefix: str = "f_", ) -> str: model.add_parameter(k := f"{k_prefix}{base}", value) f = f"{f_prefix}{base}" model.add_derived( f, fn=rate_factor, args=[rxn_compartment, k, cpd_compartment], ) return f m = Model() m.add_parameters({"c1": 2.0, "a1": 4.0}) rf = add_rate_factor(m, "r1", 1.0, rxn_compartment="a1", cpd_compartment="c1") m.get_args().loc[rf]

Out[3]:

np.float64(2.0)

Examples¶

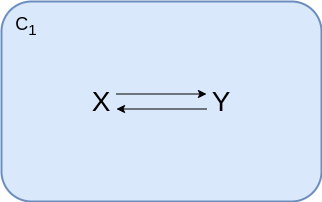

Single compartment¶

In case all your reactions happen in the volume of the same compartment, you don't need to change anything.

Whether your variables describe an amount or a concentration does not matter, the equations are identical.

Here we use standard reversible mass-action kinetics, once formulated explicitly with forward and backward kinetic constants and once using the equilibrium constant.

$$\begin{align*} v &= k_f x - k_r y \\ &= k_f \left( x - \frac{y}{K_{eq}} \right)\\ \end{align*}$$

In [4]:

m = (
    Model()
    .add_variables({"x": 2.0, "y": 1.0})
    .add_parameters({"kf": 1.0, "keq": 2.0})
    .add_reaction(
        "v1",
        ma_1s_1p_keq,
        args=["x", "y", "kf", "keq"],
        stoichiometry={"x": -1, "y": 1},
    )
)

c, v = unwrap(Simulator(m).simulate(10).get_result())
_ = plot.lines(
    c,
    xlabel="Time",
    ylabel="Amount or Concentration",
    ax=plot.one_axes(figsize=(4, 3))[1],
)

m = ( Model() .add_variables({"x": 2.0, "y": 1.0}) .add_parameters({"kf": 1.0, "keq": 2.0}) .add_reaction( "v1", ma_1s_1p_keq, args=["x", "y", "kf", "keq"], stoichiometry={"x": -1, "y": 1}, ) ) c, v = unwrap(Simulator(m).simulate(10).get_result()) _ = plot.lines( c, xlabel="Time", ylabel="Amount or Concentration", ax=plot.one_axes(figsize=(4, 3))[1], )

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[4], line 7
      1 m = (
      2     Model()
      3     .add_variables({"x": 2.0, "y": 1.0})
      4     .add_parameters({"kf": 1.0, "keq": 2.0})
      5     .add_reaction(
      6         "v1",
----> 7         ma_1s_1p_keq,
      8         args=["x", "y", "kf", "keq"],
      9         stoichiometry={"x": -1, "y": 1},
     10     )
     11 )
     13 c, v = unwrap(Simulator(m).simulate(10).get_result())
     14 _ = plot.lines(
     15     c,
     16     xlabel="Time",
     17     ylabel="Amount or Concentration",
     18     ax=plot.one_axes(figsize=(4, 3))[1],
     19 )

NameError: name 'ma_1s_1p_keq' is not defined

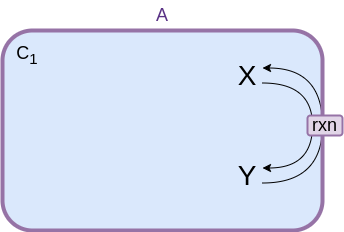

Single compartment - at membrane¶

$$\begin{align*} v &= {\color{purple} A} \left( k_f \frac{n_x}{{\color{cyan}C_1} } - k_r \frac{n_y}{{\color{cyan}C_1}} \right) \\ &= f_f n_x - f_r n_y \\ &= f_f \left( n_x - \frac{n_y}{K_{eq}} \right)\\ \end{align*}$$

In [5]:

m = (
    Model()
    .add_variables({"n_x": 2.0, "n_y": 1.0})
    .add_parameters(
        {
            "kf": 1.0,
            "keq": 2.0,
            "c1": 1.5,  # compartment volume
            "a1": 1.0,  # area of membrane
        }
    )
    # Now compartmentalise
    .add_derived("ff", rate_factor, args=["a1", "kf", "c1"])
    .add_derived("x_c1", fns.div, args=["n_x", "c1"])
    .add_derived("y_c1", fns.div, args=["n_y", "c1"])
    .add_reaction(
        "v1",
        ma_1s_1p_keq,
        args=["n_x", "n_y", "ff", "keq"],
        stoichiometry={"n_x": -1, "n_y": 1},
    )
)

c, v = unwrap(Simulator(m).simulate(10).get_result())
fig, (ax1, ax2) = plot.two_axes(figsize=(6, 3))
_ = plot.lines(
    c.loc[:, ["n_x", "n_y"]],
    ax=ax1,
    xlabel="Time",
    ylabel="Amount",
)
_ = plot.lines(
    c.loc[:, ["x_c1", "y_c1"]],
    ax=ax2,
    xlabel="Time",
    ylabel="Concentration",
)

m = ( Model() .add_variables({"n_x": 2.0, "n_y": 1.0}) .add_parameters( { "kf": 1.0, "keq": 2.0, "c1": 1.5, # compartment volume "a1": 1.0, # area of membrane } ) # Now compartmentalise .add_derived("ff", rate_factor, args=["a1", "kf", "c1"]) .add_derived("x_c1", fns.div, args=["n_x", "c1"]) .add_derived("y_c1", fns.div, args=["n_y", "c1"]) .add_reaction( "v1", ma_1s_1p_keq, args=["n_x", "n_y", "ff", "keq"], stoichiometry={"n_x": -1, "n_y": 1}, ) ) c, v = unwrap(Simulator(m).simulate(10).get_result()) fig, (ax1, ax2) = plot.two_axes(figsize=(6, 3)) _ = plot.lines( c.loc[:, ["n_x", "n_y"]], ax=ax1, xlabel="Time", ylabel="Amount", ) _ = plot.lines( c.loc[:, ["x_c1", "y_c1"]], ax=ax2, xlabel="Time", ylabel="Concentration", )

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[5], line 18
      1 m = (
      2     Model()
      3     .add_variables({"n_x": 2.0, "n_y": 1.0})
      4     .add_parameters(
      5         {
      6             "kf": 1.0,
      7             "keq": 2.0,
      8             "c1": 1.5,  # compartment volume
      9             "a1": 1.0,  # area of membrane
     10         }
     11     )
     12     # Now compartmentalise
     13     .add_derived("ff", rate_factor, args=["a1", "kf", "c1"])
     14     .add_derived("x_c1", fns.div, args=["n_x", "c1"])
     15     .add_derived("y_c1", fns.div, args=["n_y", "c1"])
     16     .add_reaction(
     17         "v1",
---> 18         ma_1s_1p_keq,
     19         args=["n_x", "n_y", "ff", "keq"],
     20         stoichiometry={"n_x": -1, "n_y": 1},
     21     )
     22 )
     24 c, v = unwrap(Simulator(m).simulate(10).get_result())
     25 fig, (ax1, ax2) = plot.two_axes(figsize=(6, 3))

NameError: name 'ma_1s_1p_keq' is not defined

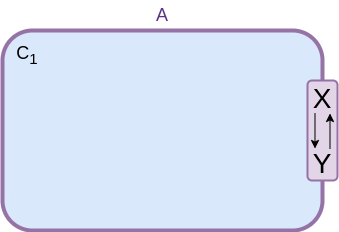

Single compartment - on membrane¶

This special case depends only on the area of the membrane, not on the volume of the compartment

$$\begin{align*} v &= {\color{purple} A} \left( k_f \frac{n_x}{{\color{purple} A} } - k_r \frac{n_y}{{\color{purple} A} } \right) \\ &= f_f n_x - f_r n_y \\ &= f_f \left( n_x - \frac{n_y}{K_{eq}} \right)\\ \end{align*}$$

In [6]:

m = (
    Model()
    .add_variables({"n_x": 2.0, "n_y": 1.0})
    .add_parameters(
        {
            "kf": 1.0,
            "keq": 2.0,
        }
    )
    .add_reaction(
        "v1",
        ma_1s_1p_keq,
        args=["n_x", "n_y", "kf", "keq"],
        stoichiometry={"n_x": -1, "n_y": 1},
    )
)

c, v = unwrap(Simulator(m).simulate(10).get_result())
_ = plot.lines(
    c.loc[:, ["n_x", "n_y"]],
    xlabel="Time",
    ylabel="Amount",
    ax=plot.one_axes(figsize=(4, 3))[1],
)

m = ( Model() .add_variables({"n_x": 2.0, "n_y": 1.0}) .add_parameters( { "kf": 1.0, "keq": 2.0, } ) .add_reaction( "v1", ma_1s_1p_keq, args=["n_x", "n_y", "kf", "keq"], stoichiometry={"n_x": -1, "n_y": 1}, ) ) c, v = unwrap(Simulator(m).simulate(10).get_result()) _ = plot.lines( c.loc[:, ["n_x", "n_y"]], xlabel="Time", ylabel="Amount", ax=plot.one_axes(figsize=(4, 3))[1], )

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[6], line 12
      1 m = (
      2     Model()
      3     .add_variables({"n_x": 2.0, "n_y": 1.0})
      4     .add_parameters(
      5         {
      6             "kf": 1.0,
      7             "keq": 2.0,
      8         }
      9     )
     10     .add_reaction(
     11         "v1",
---> 12         ma_1s_1p_keq,
     13         args=["n_x", "n_y", "kf", "keq"],
     14         stoichiometry={"n_x": -1, "n_y": 1},
     15     )
     16 )
     18 c, v = unwrap(Simulator(m).simulate(10).get_result())
     19 _ = plot.lines(
     20     c.loc[:, ["n_x", "n_y"]],
     21     xlabel="Time",
     22     ylabel="Amount",
     23     ax=plot.one_axes(figsize=(4, 3))[1],
     24 )

NameError: name 'ma_1s_1p_keq' is not defined

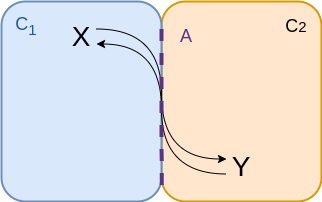

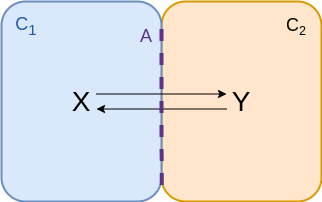

Two compartments - diffusion accross membrane¶

$$\begin{align*} v &= {\color{purple} A} \left( k_f \frac{n_x}{{\color{cyan} C_1}} - k_r \frac{n_y}{{\color{coral} C_2}} \right) \\ &= f_f n_x - f_r n_y \\ &= f_f \left( n_x - \frac{n_y}{K_{eq}} \right)\\ \end{align*}$$

In [7]:

m = (
    Model()
    .add_variables({"nx_c1": 2.0, "ny_c2": 1.0})
    .add_parameters({"kf": 1.0, "keq": 2.0, "c1": 1.5, "c2": 0.5})
    # Now compartmentalise
    .add_derived("ff", fns.div, args=["kf", "c1"])
    .add_derived("x_c1", fns.div, args=["nx_c1", "c1"])
    .add_derived("x_c2", fns.div, args=["ny_c2", "c2"])
    .add_reaction(
        "v1",
        ma_1s_1p_keq,
        args=["nx_c1", "ny_c2", "ff", "keq"],
        stoichiometry={"nx_c1": -1, "ny_c2": 1},
    )
)

c, v = unwrap(Simulator(m).simulate(10).get_result())
fig, (ax1, ax2) = plot.two_axes(figsize=(6, 3))
_ = plot.lines(
    c.loc[:, ["nx_c1", "ny_c2"]],
    ax=ax1,
    xlabel="Time",
    ylabel="Amount",
)
_ = plot.lines(
    c.loc[:, ["x_c1", "x_c2"]],
    ax=ax2,
    xlabel="Time",
    ylabel="Concentration",
)

m = ( Model() .add_variables({"nx_c1": 2.0, "ny_c2": 1.0}) .add_parameters({"kf": 1.0, "keq": 2.0, "c1": 1.5, "c2": 0.5}) # Now compartmentalise .add_derived("ff", fns.div, args=["kf", "c1"]) .add_derived("x_c1", fns.div, args=["nx_c1", "c1"]) .add_derived("x_c2", fns.div, args=["ny_c2", "c2"]) .add_reaction( "v1", ma_1s_1p_keq, args=["nx_c1", "ny_c2", "ff", "keq"], stoichiometry={"nx_c1": -1, "ny_c2": 1}, ) ) c, v = unwrap(Simulator(m).simulate(10).get_result()) fig, (ax1, ax2) = plot.two_axes(figsize=(6, 3)) _ = plot.lines( c.loc[:, ["nx_c1", "ny_c2"]], ax=ax1, xlabel="Time", ylabel="Amount", ) _ = plot.lines( c.loc[:, ["x_c1", "x_c2"]], ax=ax2, xlabel="Time", ylabel="Concentration", )

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[7], line 11
      1 m = (
      2     Model()
      3     .add_variables({"nx_c1": 2.0, "ny_c2": 1.0})
      4     .add_parameters({"kf": 1.0, "keq": 2.0, "c1": 1.5, "c2": 0.5})
      5     # Now compartmentalise
      6     .add_derived("ff", fns.div, args=["kf", "c1"])
      7     .add_derived("x_c1", fns.div, args=["nx_c1", "c1"])
      8     .add_derived("x_c2", fns.div, args=["ny_c2", "c2"])
      9     .add_reaction(
     10         "v1",
---> 11         ma_1s_1p_keq,
     12         args=["nx_c1", "ny_c2", "ff", "keq"],
     13         stoichiometry={"nx_c1": -1, "ny_c2": 1},
     14     )
     15 )
     17 c, v = unwrap(Simulator(m).simulate(10).get_result())
     18 fig, (ax1, ax2) = plot.two_axes(figsize=(6, 3))

NameError: name 'ma_1s_1p_keq' is not defined

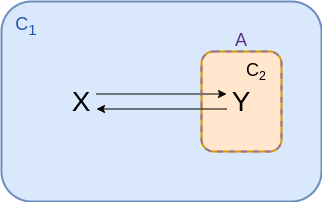

Two compartments - inside¶

$$\begin{align*} v &= {\color{purple} A} \left( k_f \frac{n_x}{{\color{cyan} C_1}} - k_r \frac{n_y}{{\color{coral} C_2}} \right) \\ &= f_f n_x - f_r n_y \\ &= f_f \left( n_x - \frac{n_y}{K_{eq}} \right)\\ \end{align*}$$

In [8]:

m = (
    Model()
    .add_variables({"nx_c1": 2.0, "ny_c2": 1.0})
    .add_parameters({"kf": 1.0, "keq": 2.0, "c1": 1.5, "c2": 0.5})
    # Now compartmentalise
    .add_derived("ff", fns.div, args=["kf", "c1"])
    .add_derived("x_c1", fns.div, args=["nx_c1", "c1"])
    .add_derived("x_c2", fns.div, args=["ny_c2", "c2"])
    .add_reaction(
        "v1",
        ma_1s_1p_keq,
        args=["nx_c1", "ny_c2", "ff", "keq"],
        stoichiometry={"nx_c1": -1, "ny_c2": 1},
    )
)

c, v = unwrap(Simulator(m).simulate(10).get_result())
fig, (ax1, ax2) = plot.two_axes(figsize=(6, 3))
_ = plot.lines(
    c.loc[:, ["nx_c1", "ny_c2"]],
    ax=ax1,
    xlabel="Time",
    ylabel="Amount",
)
_ = plot.lines(
    c.loc[:, ["x_c1", "x_c2"]],
    ax=ax2,
    xlabel="Time",
    ylabel="Concentration",
)

m = ( Model() .add_variables({"nx_c1": 2.0, "ny_c2": 1.0}) .add_parameters({"kf": 1.0, "keq": 2.0, "c1": 1.5, "c2": 0.5}) # Now compartmentalise .add_derived("ff", fns.div, args=["kf", "c1"]) .add_derived("x_c1", fns.div, args=["nx_c1", "c1"]) .add_derived("x_c2", fns.div, args=["ny_c2", "c2"]) .add_reaction( "v1", ma_1s_1p_keq, args=["nx_c1", "ny_c2", "ff", "keq"], stoichiometry={"nx_c1": -1, "ny_c2": 1}, ) ) c, v = unwrap(Simulator(m).simulate(10).get_result()) fig, (ax1, ax2) = plot.two_axes(figsize=(6, 3)) _ = plot.lines( c.loc[:, ["nx_c1", "ny_c2"]], ax=ax1, xlabel="Time", ylabel="Amount", ) _ = plot.lines( c.loc[:, ["x_c1", "x_c2"]], ax=ax2, xlabel="Time", ylabel="Concentration", )

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[8], line 11
      1 m = (
      2     Model()
      3     .add_variables({"nx_c1": 2.0, "ny_c2": 1.0})
      4     .add_parameters({"kf": 1.0, "keq": 2.0, "c1": 1.5, "c2": 0.5})
      5     # Now compartmentalise
      6     .add_derived("ff", fns.div, args=["kf", "c1"])
      7     .add_derived("x_c1", fns.div, args=["nx_c1", "c1"])
      8     .add_derived("x_c2", fns.div, args=["ny_c2", "c2"])
      9     .add_reaction(
     10         "v1",
---> 11         ma_1s_1p_keq,
     12         args=["nx_c1", "ny_c2", "ff", "keq"],
     13         stoichiometry={"nx_c1": -1, "ny_c2": 1},
     14     )
     15 )
     17 c, v = unwrap(Simulator(m).simulate(10).get_result())
     18 fig, (ax1, ax2) = plot.two_axes(figsize=(6, 3))

NameError: name 'ma_1s_1p_keq' is not defined

Two compartments - at membrane¶

$$\begin{align*} v &= {\color{purple} A} \left( k_f \frac{n_x}{{\color{cyan} C_1}} - k_r \frac{n_y}{{\color{coral} C_2}} \right) \\ &= f_f n_x - f_r n_y \\ &= f_f \left( n_x - \frac{n_y}{K_{eq}} \right)\\ \end{align*}$$

In [9]:

m = (
    Model()
    .add_variables({"nx_c1": 2.0, "ny_c2": 1.0})
    .add_parameters({"kf": 1.0, "keq": 2.0, "c1": 1.5, "c2": 0.5})
    # Now compartmentalise
    .add_derived("ff", fns.div, args=["kf", "c1"])
    .add_derived("x_c1", fns.div, args=["nx_c1", "c1"])
    .add_derived("x_c2", fns.div, args=["ny_c2", "c2"])
    .add_reaction(
        "v1",
        ma_1s_1p_keq,
        args=["nx_c1", "ny_c2", "ff", "keq"],
        stoichiometry={"nx_c1": -1, "ny_c2": 1},
    )
)

c, v = unwrap(Simulator(m).simulate(10).get_result())
fig, (ax1, ax2) = plot.two_axes(figsize=(6, 3))
_ = plot.lines(
    c.loc[:, ["nx_c1", "ny_c2"]],
    ax=ax1,
    xlabel="Time",
    ylabel="Amount",
)
_ = plot.lines(
    c.loc[:, ["x_c1", "x_c2"]],
    ax=ax2,
    xlabel="Time",
    ylabel="Concentration",
)

m = ( Model() .add_variables({"nx_c1": 2.0, "ny_c2": 1.0}) .add_parameters({"kf": 1.0, "keq": 2.0, "c1": 1.5, "c2": 0.5}) # Now compartmentalise .add_derived("ff", fns.div, args=["kf", "c1"]) .add_derived("x_c1", fns.div, args=["nx_c1", "c1"]) .add_derived("x_c2", fns.div, args=["ny_c2", "c2"]) .add_reaction( "v1", ma_1s_1p_keq, args=["nx_c1", "ny_c2", "ff", "keq"], stoichiometry={"nx_c1": -1, "ny_c2": 1}, ) ) c, v = unwrap(Simulator(m).simulate(10).get_result()) fig, (ax1, ax2) = plot.two_axes(figsize=(6, 3)) _ = plot.lines( c.loc[:, ["nx_c1", "ny_c2"]], ax=ax1, xlabel="Time", ylabel="Amount", ) _ = plot.lines( c.loc[:, ["x_c1", "x_c2"]], ax=ax2, xlabel="Time", ylabel="Concentration", )

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[9], line 11
      1 m = (
      2     Model()
      3     .add_variables({"nx_c1": 2.0, "ny_c2": 1.0})
      4     .add_parameters({"kf": 1.0, "keq": 2.0, "c1": 1.5, "c2": 0.5})
      5     # Now compartmentalise
      6     .add_derived("ff", fns.div, args=["kf", "c1"])
      7     .add_derived("x_c1", fns.div, args=["nx_c1", "c1"])
      8     .add_derived("x_c2", fns.div, args=["ny_c2", "c2"])
      9     .add_reaction(
     10         "v1",
---> 11         ma_1s_1p_keq,
     12         args=["nx_c1", "ny_c2", "ff", "keq"],
     13         stoichiometry={"nx_c1": -1, "ny_c2": 1},
     14     )
     15 )
     17 c, v = unwrap(Simulator(m).simulate(10).get_result())
     18 fig, (ax1, ax2) = plot.two_axes(figsize=(6, 3))

NameError: name 'ma_1s_1p_keq' is not defined

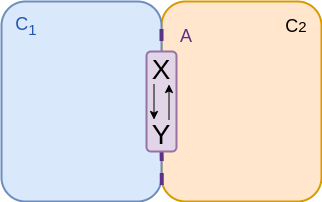

Two compartments - on membrane¶

$$\begin{align*} v &= {\color{purple} A} \left( k_f \frac{n_x}{{\color{purple} A}} - k_r \frac{n_y}{{\color{purple} A}} \right) \\ &= f_f n_x - f_r n_y \\ &= f_f \left( n_x - \frac{n_y}{K_{eq}} \right)\\ \end{align*}$$

In [10]:

m = (
    Model()
    .add_variables({"nx_c1": 2.0, "ny_c2": 1.0})
    .add_parameters({"kf": 1.0, "keq": 2.0, "c1": 1.5, "c2": 0.5})
    # Now compartmentalise
    .add_derived("ff", fns.div, args=["kf", "c1"])
    .add_derived("x_c1", fns.div, args=["nx_c1", "c1"])
    .add_derived("x_c2", fns.div, args=["ny_c2", "c2"])
    .add_reaction(
        "v1",
        ma_1s_1p_keq,
        args=["nx_c1", "ny_c2", "ff", "keq"],
        stoichiometry={"nx_c1": -1, "ny_c2": 1},
    )
)

c, v = unwrap(Simulator(m).simulate(10).get_result())
fig, (ax1, ax2) = plot.two_axes(figsize=(6, 3))
_ = plot.lines(
    c.loc[:, ["nx_c1", "ny_c2"]],
    ax=ax1,
    xlabel="Time",
    ylabel="Amount",
)
_ = plot.lines(
    c.loc[:, ["x_c1", "x_c2"]],
    ax=ax2,
    xlabel="Time",
    ylabel="Concentration",
)

m = ( Model() .add_variables({"nx_c1": 2.0, "ny_c2": 1.0}) .add_parameters({"kf": 1.0, "keq": 2.0, "c1": 1.5, "c2": 0.5}) # Now compartmentalise .add_derived("ff", fns.div, args=["kf", "c1"]) .add_derived("x_c1", fns.div, args=["nx_c1", "c1"]) .add_derived("x_c2", fns.div, args=["ny_c2", "c2"]) .add_reaction( "v1", ma_1s_1p_keq, args=["nx_c1", "ny_c2", "ff", "keq"], stoichiometry={"nx_c1": -1, "ny_c2": 1}, ) ) c, v = unwrap(Simulator(m).simulate(10).get_result()) fig, (ax1, ax2) = plot.two_axes(figsize=(6, 3)) _ = plot.lines( c.loc[:, ["nx_c1", "ny_c2"]], ax=ax1, xlabel="Time", ylabel="Amount", ) _ = plot.lines( c.loc[:, ["x_c1", "x_c2"]], ax=ax2, xlabel="Time", ylabel="Concentration", )

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[10], line 11
      1 m = (
      2     Model()
      3     .add_variables({"nx_c1": 2.0, "ny_c2": 1.0})
      4     .add_parameters({"kf": 1.0, "keq": 2.0, "c1": 1.5, "c2": 0.5})
      5     # Now compartmentalise
      6     .add_derived("ff", fns.div, args=["kf", "c1"])
      7     .add_derived("x_c1", fns.div, args=["nx_c1", "c1"])
      8     .add_derived("x_c2", fns.div, args=["ny_c2", "c2"])
      9     .add_reaction(
     10         "v1",
---> 11         ma_1s_1p_keq,
     12         args=["nx_c1", "ny_c2", "ff", "keq"],
     13         stoichiometry={"nx_c1": -1, "ny_c2": 1},
     14     )
     15 )
     17 c, v = unwrap(Simulator(m).simulate(10).get_result())
     18 fig, (ax1, ax2) = plot.two_axes(figsize=(6, 3))

NameError: name 'ma_1s_1p_keq' is not defined

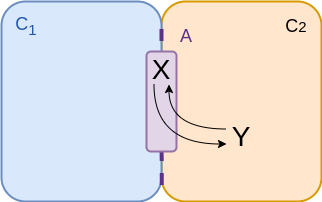

Two compartments - onto / off membrane¶

$$\begin{align*} v &= {\color{purple} A} \left( k_f \frac{n_x}{{\color{cyan} C_1}} - k_r \frac{n_y}{{\color{purple} A} } \right) \\ &= f_f n_x - f_r n_y \\ &= f_f \left( n_x - \frac{n_y}{K_{eq}} \right)\\ \end{align*}$$

In [11]:

m = (
    Model()
    .add_variables({"nx_c1": 2.0, "ny_a": 1.0})
    .add_parameters({"kf": 1.0, "keq": 2.0, "c1": 1.5, "a": 0.5})
    # Now compartmentalise
    .add_derived("ff", rate_factor, args=["a", "kf", "c1"])
    .add_derived("x_c1", fns.div, args=["nx_c1", "c1"])
    .add_reaction(
        "v1",
        ma_1s_1p_keq,
        args=["nx_c1", "ny_a", "ff", "keq"],
        stoichiometry={"nx_c1": -1, "ny_a": 1},
    )
)

c, v = unwrap(Simulator(m).simulate(10).get_result())
fig, (ax1, ax2) = plot.two_axes(figsize=(6, 3))
_ = plot.lines(
    c.loc[:, ["nx_c1", "ny_a"]],
    ax=ax1,
    xlabel="Time",
    ylabel="Amount",
)
_ = plot.lines(
    c.loc[:, ["x_c1"]],
    ax=ax2,
    xlabel="Time",
    ylabel="Concentration",
)

m = ( Model() .add_variables({"nx_c1": 2.0, "ny_a": 1.0}) .add_parameters({"kf": 1.0, "keq": 2.0, "c1": 1.5, "a": 0.5}) # Now compartmentalise .add_derived("ff", rate_factor, args=["a", "kf", "c1"]) .add_derived("x_c1", fns.div, args=["nx_c1", "c1"]) .add_reaction( "v1", ma_1s_1p_keq, args=["nx_c1", "ny_a", "ff", "keq"], stoichiometry={"nx_c1": -1, "ny_a": 1}, ) ) c, v = unwrap(Simulator(m).simulate(10).get_result()) fig, (ax1, ax2) = plot.two_axes(figsize=(6, 3)) _ = plot.lines( c.loc[:, ["nx_c1", "ny_a"]], ax=ax1, xlabel="Time", ylabel="Amount", ) _ = plot.lines( c.loc[:, ["x_c1"]], ax=ax2, xlabel="Time", ylabel="Concentration", )

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[11], line 10
      1 m = (
      2     Model()
      3     .add_variables({"nx_c1": 2.0, "ny_a": 1.0})
      4     .add_parameters({"kf": 1.0, "keq": 2.0, "c1": 1.5, "a": 0.5})
      5     # Now compartmentalise
      6     .add_derived("ff", rate_factor, args=["a", "kf", "c1"])
      7     .add_derived("x_c1", fns.div, args=["nx_c1", "c1"])
      8     .add_reaction(
      9         "v1",
---> 10         ma_1s_1p_keq,
     11         args=["nx_c1", "ny_a", "ff", "keq"],
     12         stoichiometry={"nx_c1": -1, "ny_a": 1},
     13     )
     14 )
     16 c, v = unwrap(Simulator(m).simulate(10).get_result())
     17 fig, (ax1, ax2) = plot.two_axes(figsize=(6, 3))

NameError: name 'ma_1s_1p_keq' is not defined

$$\begin{align*} v &= {\color{purple} A} \left( k_f \frac{n_x}{{\color{purple} A} } - k_r \frac{n_y}{{\color{coral} C_2}} \right) \\ &= f_f n_x - f_r n_y \\ &= f_f \left( n_x - \frac{n_y}{K_{eq}} \right)\\ \end{align*}$$

In [12]:

m = (
    Model()
    .add_variables({"nx_a": 2.0, "ny_c2": 1.0})
    .add_parameters({"kf": 1.0, "keq": 2.0, "c2": 1.5, "a": 0.5})
    # Now compartmentalise
    .add_derived("ff", rate_factor, args=["a", "kf", "a"])
    .add_derived("y_c2", fns.div, args=["nx_a", "c2"])
    .add_reaction(
        "v1",
        ma_1s_1p_keq,
        args=["nx_a", "ny_c2", "ff", "keq"],
        stoichiometry={"nx_a": -1, "ny_c2": 1},
    )
)

c, v = unwrap(Simulator(m).simulate(10).get_result())
fig, (ax1, ax2) = plot.two_axes(figsize=(6, 3))
_ = plot.lines(
    c.loc[:, ["nx_a", "ny_c2"]],
    ax=ax1,
    xlabel="Time",
    ylabel="Amount",
)
_ = plot.lines(
    c.loc[:, ["y_c2"]],
    ax=ax2,
    xlabel="Time",
    ylabel="Concentration",
)

m = ( Model() .add_variables({"nx_a": 2.0, "ny_c2": 1.0}) .add_parameters({"kf": 1.0, "keq": 2.0, "c2": 1.5, "a": 0.5}) # Now compartmentalise .add_derived("ff", rate_factor, args=["a", "kf", "a"]) .add_derived("y_c2", fns.div, args=["nx_a", "c2"]) .add_reaction( "v1", ma_1s_1p_keq, args=["nx_a", "ny_c2", "ff", "keq"], stoichiometry={"nx_a": -1, "ny_c2": 1}, ) ) c, v = unwrap(Simulator(m).simulate(10).get_result()) fig, (ax1, ax2) = plot.two_axes(figsize=(6, 3)) _ = plot.lines( c.loc[:, ["nx_a", "ny_c2"]], ax=ax1, xlabel="Time", ylabel="Amount", ) _ = plot.lines( c.loc[:, ["y_c2"]], ax=ax2, xlabel="Time", ylabel="Concentration", )

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[12], line 10
      1 m = (
      2     Model()
      3     .add_variables({"nx_a": 2.0, "ny_c2": 1.0})
      4     .add_parameters({"kf": 1.0, "keq": 2.0, "c2": 1.5, "a": 0.5})
      5     # Now compartmentalise
      6     .add_derived("ff", rate_factor, args=["a", "kf", "a"])
      7     .add_derived("y_c2", fns.div, args=["nx_a", "c2"])
      8     .add_reaction(
      9         "v1",
---> 10         ma_1s_1p_keq,
     11         args=["nx_a", "ny_c2", "ff", "keq"],
     12         stoichiometry={"nx_a": -1, "ny_c2": 1},
     13     )
     14 )
     16 c, v = unwrap(Simulator(m).simulate(10).get_result())
     17 fig, (ax1, ax2) = plot.two_axes(figsize=(6, 3))

NameError: name 'ma_1s_1p_keq' is not defined

First finish line

With that you now know most of what you will need from a day-to-day basis about compartmentalisation in mxlpy.

Congratulations!

In [ ]:
